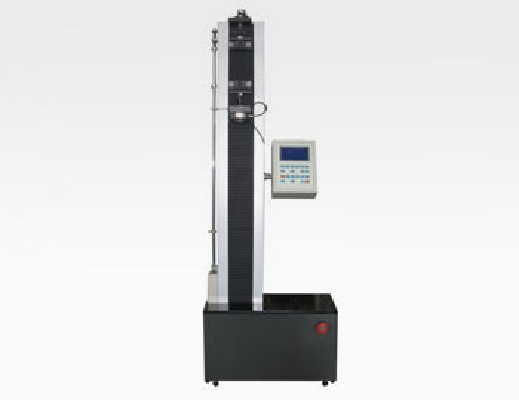

This series of screen tension test arm electronic tensile testing machine is suitable for rubber, plastics, textile fabrics, waterproof materials, wire and cable, wire mesh, metal wire, metal rods, plates and other materials, can increase with compression, bending test. With test digital display, continuously adjustable speed test, the samples were broken, automatic shutdown, peak hold function.
Functions and features:
1, using high precision, all digital speed control system and precision reducer, drive precision screw pair test, to achieve a wide range of test speed regulation, low noise, smooth operation.
2, the universal joint cross bolt structure, but also has the swing angle limit function, on the one hand facilitate sample clamping, ensure concentricity test, on the other hand, good to eliminate the influence of irregular samples on the sensor.
3, touch key operation mode, liquid crystal display real-time display. Display interface can display the test method selection interface, test parameters selection interface, test operation and the results show that the interface and the curve display interface, convenient and quick.
4, the speed of the beam can be adjusted to achieve sample loading, with over current, over voltage, overload and other protective devices..
5, optional microcomputer interface, can be connected with the microcomputer to achieve the control of the test process and data storage, printing.
